Every wiring harness in the factory parts catalogue, scoped to this VIN by engine, gearbox, steering hand and chassis number.

S60 (11-) 2015A engine B4204T11 gearbox TG-81SC LHD chassis 303627
269
Distinct part numbers
136
Confirmed fits
135
Option-dependent
33
Ruled out
51
Catalogue sections

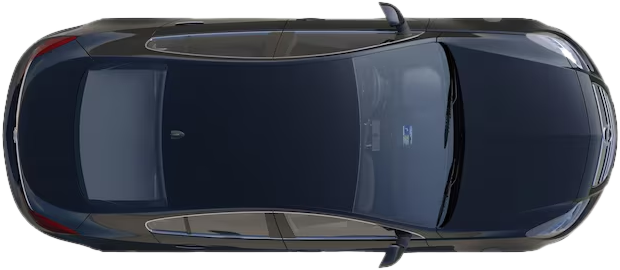

Top-down view of the 2015 Volvo S60 Rear axle & tow bar · 46 part nos REAR 46 Tailgate & rear bumper · 16 part nos TAILGATE 16 Rear doors · 5 part nos R.DOORS 5 Floor, roof & body · 31 part nos FLOOR 31 Front doors · 9 part nos F.DOORS 9 Seats · 44 part nos SEATS 44 Dashboard & console · 64 part nos DASH 64 Engine bay · 65 part nos ENGINE 65 FRONT REAR

The catalog.

ABS sensor front

section 83310811 · 1 rows

Call‑out Part number Description Applicability Verdict
3 30746040 used › Wiring harness Also order 2 pcs 9130467. fits

CADS

section 65662399 · 2 rows

Call‑out Part number Description Applicability Verdict
1 30724713 used › Wiring harness — no restriction fits
2 30773854 used › Wiring harness
adapter wiring
 R.H.D
steering: R.H.D
not this car

Compressor

section 78207149 · 1 rows

Call‑out Part number Description Applicability Verdict
7 31250767 used › Harness — no restriction fits

Head restraint

section 76854682 · 5 rows

Call‑out Part number Description Applicability Verdict
3 31320297 used › Wiring harness — no restriction fits
9 31269634 used › Wiring harness
head restraint
 — no restriction fits
10 31269635 used › Wiring harness
extension
 — no restriction fits
11 31320300 used › Wiring harness
power
 — no restriction fits
11 31373499 used › Wiring harness
audio · power
 — no restriction fits

Media player (IAM)

section 83691296 · 2 rows

Call‑out Part number Description Applicability Verdict
6 31266956 used › Harness Accessory · Video cable ICM
other
option
6 31339678 used › Harness Accessory · RTI · adapter
navigation · other
option

RSE headrest accessory

section 82315418 · 8 rows

Call‑out Part number Description Applicability Verdict
5 31373797 used › Wiring harness
head restraint
 — no restriction fits
6 31373828 used › Wiring harness power audio
other
option
7 31316537 used › Wiring harness Adapter wiring fits
9 31373829 used › Wiring harness — no restriction fits
10 31373793 used › Wiring harness USB
other
option
11 31373794 used › Wiring harness IPOD
other
option
12 31269634 used › Wiring harness A/V fits
13 31269635 used › Wiring harness A/V · Extension fits

Sensus Connected Touch (ACU) accessory

section 83145552 · 5 rows

Call‑out Part number Description Applicability Verdict
6 31399395 used › Harness GPS
other
option
7 31350343 used › Harness LIN/AUDIO
other
option
8 31350341 used › Harness IAM
other
option
9 31350342 used › Harness ICM
other
option
10 31399171 used › Harness USB
other
option

adapter wiring radar

section 73874488 · 2 rows · exploded plate GR-349306

Call‑out Part number Description Applicability Verdict
1 31314679 used › Wiring harness CH -269999
chassis: CH -269999
not this car
1 31376634 used › Wiring harness CH 270000- fits

adapter wiring steering gear

section 65661909 · 3 rows · exploded plate GR-324383

Call‑out Part number Description Applicability Verdict
1 31296798 used › Cable
LHD
 Speed-related power steering.
other
option
1 31296819 used › Cable
RHD
 Speed-related power steering.
other
option
2 988860 used › Retainer — no restriction fits

alcolock

section 67157789 · 1 rows

Call‑out Part number Description Applicability Verdict
2 31316464 used › Wiring harness — no restriction fits

auxiliary heater, fuel powered

section 83998978 · 2 rows

Call‑out Part number Description Applicability Verdict
3 30780335 used › Wiring harness — no restriction fits
11 30733883 used › Wiring harness For cars with parking heater.
other
option

cable harness, front seat

section 83610527 · 24 rows · exploded plate GR-316164

Call‑out Part number Description Applicability Verdict
1 30767952 used › Harness
pretensioner
 CH -75999
chassis: CH -75999
not this car
1 9123119 used › Harness CH 76000- · OWS
other
option
1 9123946 used › Harness CH -75999 · OWS
chassis: CH -75999
not this car
1 9124454 used › Harness
pretensioner
 CH 76000- fits
2 30755421 used › Harness
front seat
 CH -75999 · For seats with and without heating. · Manually adjustable seat.
chassis: CH -75999
not this car
2 30761798 used › Harness
left
 CH -75999 · Electrically adjustable seat. · For left-hand drive vehicles. · With memory.
chassis: CH -75999
not this car
2 30761799 used › Harness
left
 CH -75999 · Electrically adjustable seat. · For right-hand vehicles. · Without memory.
chassis: CH -75999
not this car
2 30761800 used › Harness
right
 CH -75999 · Electrically adjustable seat. · For right-hand vehicles. · With memory.
chassis: CH -75999
not this car
2 30761801 used › Harness
right
 CH -75999 · Electrically adjustable seat. · For left-hand drive vehicles. · Without memory.
chassis: CH -75999
not this car
2 31364117 used › Harness
left
 CH 76000- · For seats with and without heating. · Manually adjustable seat.
other · transmission
option
2 31364119 used › Harness CH 76000- · For left-hand drive vehicles. · Power driving seat. · With memory.
other
option
2 31364120 used › Wiring harness CH 76000- · For left-hand drive vehicles. · Power driving seat. · RSE · With memory.
other
option
2 31364123 used › Harness CH 270000- · For right-hand vehicles. · Power front passenger seat. · Without memory.
other
option
2 31364124 used › Harness CH 76000- · For right-hand vehicles. · Power front passenger seat. · RSE · Without memory.
other
option
2 31364125 used › Harness
left
 CH 270000- · For vehicles with RSE. · Manually adjustable seat. · With seat heater.
other · transmission
option
2 31364126 used › Harness
right
 CH 270000- · For seats with and without heating. · Manually adjustable seat.
other · transmission
option
2 31364128 used › Harness CH 76000- · For right-hand vehicles. · Power driving seat. · With memory.
other
option
2 31364129 used › Harness CH 76000- · For right-hand vehicles. · Power driving seat. · RSE · With memory.
other
option
2 31364132 used › Harness CH 76000- · For left-hand drive vehicles. · Power front passenger seat. · Without memory.
other
option
2 31364133 used › Harness CH 76000- · For left-hand drive vehicles. · Power front passenger seat. · RSE · Without memory.
other
option
2 31364134 used › Harness
right
 CH 76000- · For vehicles with RSE. · Manually adjustable seat. · With seat heater.
other · transmission
option
2 9123110 used › Harness
left
 CH 76000-269999 · For vehicles with RSE. · Manually adjustable seat. · With seat heater.
chassis: CH 76000-269999
not this car
2 9123117 used › Harness CH 76000-269999 · For right-hand vehicles. · Power front passenger seat. · Without memory.
chassis: CH 76000-269999
not this car
2 9124377 used › Harness
right
 CH 76000-269999 · For seats with and without heating. · Manually adjustable seat.
chassis: CH 76000-269999
not this car

cable harness, washer nozzle

section 80254459 · 2 rows · exploded plate GR-388376

Call‑out Part number Description Applicability Verdict
1 31314706 used › Wiring harness
elec. heated · washer jet
 CH -269999
chassis: CH -269999
not this car
1 31376225 used › Wiring harness
elec. heated · washer jet
 CH 270000- fits

cable harness centre console

section 80316334 · 2 rows · exploded plate GR-388373

Call‑out Part number Description Applicability Verdict
1 30786395 used › Wiring harness L.H.D fits
1 31334535 used › Wiring harness R.H.D
steering: R.H.D
not this car

cable harness dashboard

section 80315350 · 11 rows · exploded plate GR-388488

Call‑out Part number Description Applicability Verdict
1 31374371 used › Wiring harness Base Performance Sound. · W/O TELE
audio · telephone
option
1 31374372 used › Wiring harness Base Performance Sound. · TELE
audio · telephone
option
1 31374383 used › Wiring harness High Performance Sound. · Premium Sound. · TELE
audio · telephone
option
1 31374386 used › Wiring harness For RTI · High Performance Sound. · Premium Sound. · Prepared for RTI. · W/O TELE
audio · navigation · telephone
option
1 31374387 used › Wiring harness For RTI · High Performance Sound. · Premium Sound. · TELE
audio · navigation · telephone
option
1 31384234 used › Wiring harness FC1: CH 299272-, FC2: CH 299307- · For cars with RTI. · For vehicles with Sensus · Prepared for RTI.
factory-code · navigation · other
option
1 31384235 used › Wiring harness (BR) · FC1: CH 299272-, FC2: CH 299307- · For vehicles with Sensus
market: (BR)
not this car
1 31384242 used › Wiring harness (BR) · High Performance Sound. · Premium Sound. · VOLVO ON CALL
market: (BR)
not this car
1 31384243 used › Wiring harness DVD · For RTI · High Performance Sound. · Premium Sound. · TV-TUNER · VOLVO ON CALL
audio · navigation · other
option
2 30773335 used › Cable
SIM-card
 EXC (BR) · FC1: CH 299272-, FC2: CH 299307- · For vehicles with Volvo On Call (VOC). · See Vehicle information · Variant code: K108.
factory-code · other
option
3 999231 used › Flange screw M6x14
other
option

cable harness dashboard component parts

section 80309250 · 7 rows · exploded plate GR-355991

Call‑out Part number Description Applicability Verdict
1 983747 used › Cable tie — no restriction fits
2 30667111 used › Cable harness duct — no restriction fits
3 31268013 used › Anchorage — no restriction fits
4 30679859 used › Clip — no restriction fits
5 30682970 used › Clip — no restriction fits
6 983747 used › Cable tie — no restriction fits
7 982635 used › Cable tie — no restriction fits

cable harness driver's door

section 80315642 · 5 rows · exploded plate GR-375833

Call‑out Part number Description Applicability Verdict
1 30728406 used › Grommet — no restriction fits
1 31374709 used › Wiring harness — no restriction fits
1 31374710 used › Wiring harness For keyless locking system.
other
option
1 31374711 used › Wiring harness Premium Sound.
audio
option
1 31374712 used › Wiring harness For keyless locking system. · Premium Sound.
audio · other
option

cable harness engine

section 83804549 · 22 rows · exploded plate GR-394754

Call‑out Part number Description Applicability Verdict
1 31343131 used › Wiring harness B4204T11, B4204T12, B4204T15 · FC 1; CH -302206, FC 2; CH -301324 · Variant code: (GK0B or GK02 or GK09) and (RZ0B or RZ04).
factory-code · other
option
1 31343132 used › Wiring harness B4204T11, B4204T12, B4204T15 · FC 1; CH -302206, FC 2; CH -301324 · Variant code: (GK0B or GK02 or GK09) and (RZ02 or RZ05).
factory-code · other
option
1 31412029 used › Wiring harness B4204T11, B4204T12, B4204T15 · FC 1; CH -302206, FC 2; CH -301324 · Variant code: (GK0D or GK04) and (RZ0B or RZ04).
factory-code · other
option
1 31412030 used › Wiring harness B4204T11, B4204T12, B4204T15 · FC 1; CH -302206, FC 2; CH -301324 · Variant code: (GK0D or GK04) and (RZ02 or RZ05).
factory-code · other
option
1 31412942 used › Wiring harness B4204T11, B4204T12, B4204T15 · FC 1; CH 302207-, FC 2; 301325- · Variant code: (GK0D or GK04) and (RZ0B or RZ04).
factory-code · other
option
1 31412943 used › Wiring harness B4204T11, B4204T12, B4204T15 · FC 1; CH 302207-, FC 2; 301325- · Variant code: (GK0D or GK04) and (RZ02 or RZ05).
factory-code · other
option
1 31412946 used › Wiring harness B4204T11, B4204T12, B4204T15 · FC 1; CH 302207-, FC 2; 301325- · Variant code: (GK0B or GK02 or GK09) and (RZ0B or RZ04).
factory-code · other
option
1 31412947 used › Wiring harness B4204T11, B4204T12, B4204T15 · FC 1; CH 302207-, FC 2; 301325- · Variant code: (GK0B or GK02 or GK09) and (RZ02 or RZ05).
factory-code · other
option
2 31343111 used › Wiring harness LHD fits
2 31343112 used › Wiring harness RHD
steering: RHD
not this car
3 31346452 used › Bracket — no restriction fits
4 31346089 used › Cable harness duct — no restriction fits
5 31346090 used › Cable harness duct — no restriction fits
6 31346088 used › Cable harness duct — no restriction fits
7 983888 used › Retaining clip
mass air flow sensor
 — no restriction fits
8 30682970 used › Clip — no restriction fits
9 983671 used › Cable tie — no restriction fits
10 982755 used › Flange screw M6x12
other
option
10 982757 used › Flange screw M6x16
other
option
10 982758 used › Flange screw M6x20
other
option
10 982793 used › Flange screw M8x16
other
option
11 999402 used › Screw with pin M6*17,9+M5*14,5
other
option

cable harness engine compartment

section 81472269 · 13 rows · exploded plate GR-370122

Call‑out Part number Description Applicability Verdict
1 31343415 used › Wiring harness CH -170117 · For vehicles without start/stop. · If necessary, supplement with adapter wiring. · Replacement parts may differ from production parts.
chassis: CH -170117
not this car
1 31343416 used › Wiring harness CH -170117 · For vehicles with start/stop. · If necessary, supplement with adapter wiring. · Replacement parts may differ from production parts.
chassis: CH -170117
not this car
1 31376050 used › Wiring harness CH 170118-270159 · For vehicles without start/stop. · If necessary, supplement with adapter wiring. · Replacement parts may differ from production parts.
chassis: CH 170118-270159
not this car
1 31376051 used › Wiring harness CH 170118-270159 · For vehicles with start/stop. · If necessary, supplement with adapter wiring. · Replacement parts may differ from production parts.
chassis: CH 170118-270159
not this car
1 31376296 used › Wiring harness CH 270160- · For vehicles without start/stop. · If necessary, supplement with adapter wiring. · Replacement parts may differ from production parts.
other
option
1 31376297 used › Wiring harness CH 270160- · For vehicles with start/stop. · If necessary, supplement with adapter wiring. · Replacement parts may differ from production parts.
other
option
2 31252211 used › Anchorage
left
 — no restriction fits
2 31252212 used › Anchorage
right
 — no restriction fits
3 31343493 used › Wiring harness
adapter wiring
 CH 76075- · Without active chassis.
other
option
4 31343492 used › Wiring harness
adapter wiring · headlamp
 CH 76075- · W/O XENON
other
option
5 30779431 used › Sealing — no restriction fits
6 30728699 used › Anchorage
ABS · bracket · left
 — no restriction fits
6 30728700 used › Anchorage
ABS · bracket · right
 — no restriction fits

cable harness engine compartment component parts

section 80334331 · 14 rows · exploded plate GR-377614

Call‑out Part number Description Applicability Verdict
1 30774052 used › Insulator retainer — no restriction fits
1 9456721 used › Cover — no restriction fits
1 983748 used › Cable tie — no restriction fits
1 983888 used › Retaining clip — no restriction fits
1 985794 used › Retaining clip — no restriction fits
2 30774152 used › Cable harness duct — no restriction fits
3 30772494 used › Cable harness duct — no restriction fits
4 983888 used › Retaining clip — no restriction fits
5 982641 used › Retainer — no restriction fits
6 985794 used › Retaining clip — no restriction fits
7 30728634 used › Cover — no restriction fits
8 985777 used › Clip — no restriction fits
9 983748 used › Cable tie I.DIA 45 mm
other
option
10 31314804 used › Cable harness duct Right
other
option

cable harness floor section

section 78922068 · 7 rows · exploded plate GR-341577

Call‑out Part number Description Applicability Verdict
1 31374472 used › Wiring harness FC1: CH -299271, FC2: CH -299306 · For vehicles without BLIS. · For vehicles without keyless system.
factory-code · other
option
1 31374478 used › Wiring harness FC1: CH -299271, FC2: CH -299306 · For vehicles with BLIS. · For vehicles without keyless system.
factory-code · other
option
1 31374485 used › Wiring harness FC1: CH -299271, FC2: CH -299306 · For vehicles with BLIS. · For vehicles with keyless system.
factory-code · other
option
1 31382607 used › Wiring harness FC1: CH 299272-, FC2: CH 299307- · For vehicles without BLIS. · For vehicles without keyless system. · Without parking camera rear.
factory-code · other · park_assist
option
1 31382613 used › Wiring harness FC1: CH 299272-, FC2: CH 299307- · For vehicles with BLIS. · For vehicles without keyless system. · Without parking camera rear.
factory-code · other · park_assist
option
1 31382619 used › Wiring harness FC1: CH 299272-, FC2: CH 299307- · For vehicles with BLIS. · For vehicles with keyless system. · Without parking camera rear.
factory-code · other · park_assist
option
1 31382620 used › Wiring harness FC1: CH 299272-, FC2: CH 299307- · For vehicles with BLIS. · For vehicles with keyless system. · Parking camera rear
factory-code · other · park_assist
option

cable harness floor section component parts

section 80315600 · 13 rows · exploded plate GR-367649

Call‑out Part number Description Applicability Verdict
2 999231 used › Flange screw
ground
 M6x14
other
option
3 30728342 used › Bellows — no restriction fits
4 30669141 used › Cable conduit — no restriction fits
5 30772561 used › Cable harness duct
rear seat
 L.H.
other
option
6 30772562 used › Cable harness duct
rear seat
 R.H.
other
option
7 983888 used › Retaining clip — no restriction fits
8 988089 used › Clip — no restriction fits
9 983890 used › Clip — no restriction fits
10 985777 used › Clip — no restriction fits
11 983750 used › Cable tie — no restriction fits
12 30732695 used › Cover 16-POLE · Connect to B post.
towbar
option
13 31300188 used › Lid CH 20113-. fits
13 31346416 used › Cap
CJB · Decal
 CH 270000- fits

cable harness front ABS sensor

section 77829258 · 2 rows · exploded plate GR-374803

Call‑out Part number Description Applicability Verdict
1 30746040 used › Wiring harness Also order 2 pcs 9130467. fits
2 9130467 used › Splice — no restriction fits

cable harness front bumper

section 81600598 · 5 rows · exploded plate GR-367331

Call‑out Part number Description Applicability Verdict
1 31210009 used › Wiring harness CH -270145 · For vehicles without front park assist.
chassis: CH -270145
not this car
1 31270140 used › Wiring harness CH -270145 · For vehicles with parking assistance.
chassis: CH -270145
not this car
1 31376321 used › Wiring harness CH 270146- · For vehicles without front park assist.
park_assist
option
1 31376322 used › Wiring harness CH 270146- · For vehicles with parking assistance.
park_assist
option
1 31376323 used › Wiring harness For vehicles with semi-automatic parallel parking assistance. · Park assist.
park_assist
option

cable harness infotainment

section 80316011 · 14 rows · exploded plate GR-356442

Call‑out Part number Description Applicability Verdict
1 30682712 used › Housing — no restriction fits
1 31374585 used › Wiring harness Base Performance Sound. · Use optical bracket where corresponding MOST unit is missing
audio · other
option
1 31374597 used › Wiring harness High Performance Sound. · Premium Sound. · Use optical bracket where corresponding MOST unit is missing
audio · other
option
1 31374598 used › Wiring harness High Performance Sound. · Premium Sound. · Satellite radio receiver. · Use optical bracket where corresponding MOST unit is missing
audio · other
option
1 31374964 used › Wiring harness Active Noise Control (ANC) · With HD Radio.
other
option
1 31374965 used › Wiring harness Active Noise Control (ANC) · For cars with RTI. · Prepared for RTI. · TELE · With HD Radio.
navigation · other · telephone
option
1 31374966 used › Wiring harness Active Noise Control (ANC) · For cars with RTI. · For vehicles with digital radio system. · Prepared for RTI. · TELE
navigation · other · telephone
option
1 31374967 used › Wiring harness Active Noise Control (ANC) · For cars with RTI. · HD radio · Prepared for RTI. · TELE · TV-TUNER
navigation · other · telephone
option
1 31374968 used › Wiring harness Active Noise Control (ANC) · For cars with RTI. · For vehicles with digital radio system. · Prepared for RTI. · TELE · TV-TUNER
navigation · other · telephone
option
1 983888 used › Retaining clip — no restriction fits
3 985777 used › Clip — no restriction fits
4 982635 used › Cable tie — no restriction fits
5 988157 used › Cable tie — no restriction fits
6 31264302 used › Wiring harness
adapter wiring · digital · radio
 — no restriction fits

cable harness passenger door

section 80316063 · 5 rows · exploded plate GR-375833

Call‑out Part number Description Applicability Verdict
1 30728406 used › Grommet — no restriction fits
1 31374761 used › Wiring harness — no restriction fits
1 31374762 used › Wiring harness For keyless locking system.
other
option
1 31374763 used › Wiring harness Premium Sound.
audio
option
1 31374764 used › Wiring harness For keyless locking system. · Premium Sound.
audio · other
option

cable harness rear axle

section 82319632 · 30 rows · exploded plate GR-390295

Call‑out Part number Description Applicability Verdict
1 30669319 used › Grommet — no restriction fits
1 30669319 used › Grommet — no restriction fits
1 30774126 used › Cover — no restriction fits
1 30774126 used › Cover — no restriction fits
1 31254638 used › Wiring harness FWD · Without active chassis.
other
option
1 31254639 used › Wiring harness Active chassis. · FWD
other
option
1 31270302 used › Wiring harness (US), (CA), (KR). · FWD · Without active chassis.
other
option
1 31270303 used › Wiring harness (EU), (OS) · FWD · Without active chassis.
market: (EU), (OS)
not this car
1 31270305 used › Wiring harness (US), (CA), (KR). · Active chassis. · FWD
other
option
1 31270306 used › Wiring harness (EU), (OS) · Active chassis. · FWD
market: (EU), (OS)
not this car
1 31314471 used › Wiring harness (US), (CA), (KR). · AWD · Without active chassis.
driveline · other
option
1 31314472 used › Wiring harness (EU), (OS) · AWD · Without active chassis.
market: (EU), (OS)
not this car
1 31314474 used › Wiring harness (US), (CA), (KR). · AWD · Active chassis.
driveline · other
option
1 31314475 used › Wiring harness (EU), (OS) · AWD · Active chassis.
market: (EU), (OS)
not this car
1 31327387 used › Wiring harness AWD · Without active chassis.
driveline · other
option
1 31327388 used › Wiring harness AWD · Active chassis.
driveline · other
option
1 8690586 used › Cover — no restriction fits
1 8690586 used › Cover — no restriction fits
1 983706 used › Cable tie — no restriction fits
1 983706 used › Cable tie — no restriction fits
1 983883 used › Cable tie — no restriction fits
1 983883 used › Cable tie — no restriction fits
1 983888 used › Retaining clip — no restriction fits
1 983888 used › Retaining clip — no restriction fits
1 985777 used › Clip — no restriction fits
2 30656280 used › Grommet — no restriction fits
2 31327319 used › Wiring harness
HALDEX
 AWD
driveline
option
2 983883 used › Cable tie I.DIA 35 mm
other
option
3 31407237 used › Service kit
fuel pump
 — no restriction fits
3 ns used ›
Adapter · Splice · blue · red
 — no restriction fits

cable harness rear bumper

section 80316356 · 8 rows · exploded plate GR-380327

Call‑out Part number Description Applicability Verdict
1 31376421 used › Wiring harness For vehicles with keyless system. · For vehicles without parking assistance.
other · park_assist
option
1 31376422 used › Wiring harness For vehicles with keyless system. · For vehicles with parking assistance.
other · park_assist
option
2 31376357 used › Wiring harness For vehicles with keyless system. · For vehicles without BLIS. · For vehicles without parking assistance.
other · park_assist
option
2 31376358 used › Wiring harness For vehicles with keyless system. · For vehicles with parking assistance. · For vehicles without BLIS.
other · park_assist
option
2 31376359 used › Wiring harness For vehicles with parking assistance. · For vehicles without BLIS. · For vehicles without keyless system.
other · park_assist
option
2 31376361 used › Wiring harness For vehicles with BLIS. · For vehicles with keyless system. · For vehicles with parking assistance.
other · park_assist
option
2 31376362 used › Wiring harness For vehicles with BLIS. · For vehicles with parking assistance. · For vehicles without keyless system.
other · park_assist
option
3 974680 used › Plug For vehicles without BLIS.
other
option

cable harness rear door

section 80315628 · 6 rows · exploded plate GR-270923

Call‑out Part number Description Applicability Verdict
1 31275439 used › Wiring harness
left
 — no restriction fits
1 31275440 used › Wiring harness
left
 For keyless locking system.
other
option
1 31275441 used › Wiring harness
right
 — no restriction fits
1 31275442 used › Wiring harness
right
 For keyless locking system.
other
option
1 989095 used › Cable tie — no restriction fits
1 989095 used › Cable tie — no restriction fits

cable harness rear seat

section 58443363 · 11 rows · exploded plate GR-248226

Call‑out Part number Description Applicability Verdict
1 30749762 used › Wiring harness For vehicles with electrically retractable head restraints. · With rear seat heater.
other
option
2 9141726 used › Wiring harness
electric · head restraint
 — no restriction fits
3 30749253 used › Wiring harness
rear seat heat
 — no restriction fits
4 30669634 used › Insulator — no restriction fits
5 30656638 used › Repair terminal — no restriction fits
6 30669156 used › Receptacle housing — no restriction fits
7 30656638 used › Repair terminal — no restriction fits
8 30669158 used › Insulator — no restriction fits
9 30656638 used › Repair terminal — no restriction fits
10 983888 used › Retaining clip 6.5x12.5 fits
11 983627 used › Cable tie — no restriction fits

cable harness roof

section 83734764 · 5 rows · exploded plate GR-394217

Call‑out Part number Description Applicability Verdict
1 31374879 used › Wiring harness — no restriction fits
2 31341072 used › Wiring harness
window module
 — no restriction fits
3 31254925 used › Wiring harness
remote reciever
 — no restriction fits
4 31374841 used › Wiring harness
Active Noise Control · microphone
 For vehicle with sunroof.
other
option
4 31374842 used › Wiring harness
Active Noise Control · microphone
 For vehicles without sun roof.
other
option

cable harness speedometer extra equipment

section 79591887 · 1 rows · exploded plate GR-258403

Call‑out Part number Description Applicability Verdict
1 31347864 used › Wiring harness
signal · speedometer
 TAXI
other
option

cable harness tailgate

section 80316347 · 4 rows · exploded plate GR-388374

Call‑out Part number Description Applicability Verdict
1 31327425 used › Wiring harness FC1: CH -299271, FC2: CH -299306 · For vehicles without keyless system.
factory-code · other
option
1 31327426 used › Wiring harness FC1: CH -299271, FC2: CH -299306 · For keyless locking system.
factory-code · other
option
1 31394034 used › Wiring harness FC1: CH 299272-, FC2: CH 299307- · For vehicles without keyless system.
factory-code · other
option
1 31394035 used › Wiring harness FC1: CH 299272-, FC2: CH 299307- · For keyless locking system.
factory-code · other
option

cable harness towbar

section 79322448 · 23 rows · exploded plate GR-350002

Call‑out Part number Description Applicability Verdict
1 31346526 used › Wiring harness 13-POLE · CH -170117
chassis: CH -170117
not this car
1 31373184 used › Wiring harness 13-POLE · FC1: CH 202304-305303 · FC2: CH 170118-304681
factory-code · towbar
option
1 31414859 used › Wiring harness 13-POLE · FC1: CH 305304- · FC2: CH 304682-
factory-code · towbar
option
2 986204 used › Six point socket screw — no restriction fits
3 983750 used › Cable tie — no restriction fits
4 999231 used › Flange screw M6x14
other
option
5 985857 used › Flange nut M5x5
other
option
6 966329 used › Fuse 15A fits
7 31350479 used › Control unit FC1: CH -290350 · FC2: CH -289829 · For vehicles with chassis number up to S60 CH -171098 tow hitch cabling 31373184 must be ordered.
factory-code · other
option
7 31407107 used › Control unit FC1: CH 290351- · FC2: CH 289830-
factory-code
option
8 30698685 used › Tape — no restriction fits
9 30728787 used › Fuse 40A fits
10 30764677 used › Towing hook 7-pol app
(AU)
 — no restriction fits
10 30764678 used › Power supply 7-pol
(AU)
 — no restriction fits
10 30764679 used › Fog light rear 7-pol appl
(AU)
 — no restriction fits
10 30764680 used › Reversing light 7-pol
(AU)
 — no restriction fits
10 30764681 used › Towing hook 13-pol app — no restriction fits
10 30764683 used › TRM remove — no restriction fits
10 30764685 used › TRM reload — no restriction fits
10 31260789 used › TRM upgrade — no restriction fits
11 31324541 used › Adapter 13/2x7-POLE · CH -20112 · CH 20113-
towbar
option
12 30664223 used › Adapter
positive power supply
 Conversion set from 7-pole to 13-pole connector. fits
13 8685525 used › Adapter
short
 13/7-POLE
towbar
option

cable harness tunnel

section 80316344 · 2 rows · exploded plate GR-341511

Call‑out Part number Description Applicability Verdict
1 31374415 used › Wiring harness Automatic gearbox
transmission
option
1 31374417 used › Wiring harness Manual gearbox
transmission
option

climate unit assembly

section 83173819 · 3 rows

Call‑out Part number Description Applicability Verdict
20 30767033 used › Wiring harness For vehicles with AQS (Air Quality System).
other
option
20 30767035 used › Wiring harness For vehicles with ECC (Electronic Climate Control). · With particle filter.
other
option
20 30767037 used › Wiring harness For vehicles with ETC. · With particle filter.
other
option

control system, ignition

section 79285106 · 1 rows

Call‑out Part number Description Applicability Verdict
5 31342677 used › Wiring harness — no restriction fits

front seat padding panels

section 83802322 · 2 rows

Call‑out Part number Description Applicability Verdict
3 9123119 used › Harness
right
 CH 76000-. fits
3 9123946 used › Harness
right
 CH -75999.
chassis: CH -75999.
not this car

glove compartment

section 83947328 · 1 rows

Call‑out Part number Description Applicability Verdict
5 31305495 used › Harness
with lamp
 — no restriction fits

handsfree Bluetooth

section 78778644 · 3 rows

Call‑out Part number Description Applicability Verdict
12 31337689 used › Harness CH -170117
chassis: CH -170117
not this car
12 31357751 used › Harness CH 170118-270159
chassis: CH 170118-270159
not this car
12 31357752 used › Harness CH 270160- fits

injectors and delivery lines

section 79256124 · 1 rows

Call‑out Part number Description Applicability Verdict
5 31336651 used › Wiring harness — no restriction fits

park assist camera rear

section 79487532 · 2 rows

Call‑out Part number Description Applicability Verdict
9 31296085 used › Harness
High Level Display Front module (HLDF)
 — no restriction fits
10 31414655 used › Harness
camera
 Accessory fits

park assist front

section 79973342 · 1 rows

Call‑out Part number Description Applicability Verdict
3 31330751 used › Wiring harness Kit
other
option

park assist rear

section 78988607 · 4 rows

Call‑out Part number Description Applicability Verdict
7 31270143 used › Wiring harness Bumper · FC1 CH -70145 · FC2 CH -270159
factory-code
option
7 31376422 used › Wiring harness Bumper · FC1 CH 70146- · FC2 CH 270160-
factory-code
option
8 30786388 used › Wiring harness Adapter wiring · FC1 CH -70145 · FC2 CH -270159
factory-code
option
8 31376358 used › Wiring harness Adapter wiring · FC1 CH 70146- · FC2 CH 270160-
factory-code
option

portable GPS

section 69319359 · 1 rows

Call‑out Part number Description Applicability Verdict
4 31305893 used › Harness — no restriction fits

primary fuse box engine compartment

section 69278987 · 2 rows

Call‑out Part number Description Applicability Verdict
9 31337164 used › Wiring harness
battery · secondary
 L.H.D fits
10 31337165 used › Wiring harness
battery · secondary
 R.H.D
steering: R.H.D
not this car

rearview mirrors

section 83009369 · 2 rows

Call‑out Part number Description Applicability Verdict
2 30799215 used › Wiring harness
left
 — no restriction fits
2 30799217 used › Wiring harness
right
 — no restriction fits

remote start heater

section 82460785 · 1 rows

Call‑out Part number Description Applicability Verdict
6 30776784 used › Wiring harness — no restriction fits

repair kit coax

section 68706409 · 1 rows

Call‑out Part number Description Applicability Verdict
1 31328399 used › Harness COAX. · FEMALE · LG 2000 mm · MALE
other
option

steering wheel, 3-spoke

section 83612379 · 5 rows

Call‑out Part number Description Applicability Verdict
5 30721890 used › Harness For steering wheel buttons and horn
other
option
6 31332540 used › Harness For vehicles with gear paddles. · For vehicles without heated steering wheel.
other
option
6 31332911 used › Harness For vehicles without gear paddles. · For vehicles without heated steering wheel.
other
option
6 31351174 used › Harness For vehicles with heated steering wheel. · For vehicles without gear paddles.
other
option
6 31351175 used › Harness For vehicles with gear paddles. · For vehicles with heated steering wheel.
other
option

wiring harness windscreen

section 73193599 · 6 rows · exploded plate GR-375054

Call‑out Part number Description Applicability Verdict
1 31394022 used › Wiring harness CH 270000- · L.H.D fits
1 31394023 used › Wiring harness CH 270000- · R.H.D
steering: R.H.D
not this car
2 31346391 used › Electronics box — no restriction fits
3 31346323 used › Bracket
box
 CH 270000- fits
4 31382910 used › Cover — no restriction fits
5 31357797 used › Wiring harness
ground
 For vehicles with heated windscreen.
other
option

Transcribed for chassis 303627 / engine B4204T11 — verify against your own VIN before ordering, as build week, market and options change part numbers. Superseded numbers still cross-reference at a dealer. Repair parts (terminals, housings, splices) are on the harness repair guide.
